GPU Tasking (cudaFlow)

Table of Contents

• Include the Header
• Create a cudaFlow
• Compile a cudaFlow Program
• Run a cudaFlow on Specific GPU
• Create Memory Operation Tasks
• Study the Granularity
• Offload a cudaFlow
• Update a cudaFlow
• Use cudaFlow in a Standalone Environment

Modern scientific computing typically leverages GPU-powered parallel processing cores to speed up large-scale applications. This chapter discusses how to implement CPU-GPU heterogeneous tasking algorithms with Nvidia CUDA.

Include the Header

You need to include the header file, taskflow/cuda/cudaflow.hpp, for creating a tf::cudaFlow task.

Create a cudaFlow

Taskflow leverages CUDA Graph to enable concurrent CPU-GPU tasking using a task graph model, tf::cudaFlow. A cudaFlow is a task in a taskflow and is associated with a CUDA graph to execute multiple dependent GPU operations in a single CPU call. To create a cudaFlow task, emplace a callable with an argument of type tf::cudaFlow. The following example implements the canonical saxpy (A·X Plus Y) task graph using tf::cudaFlow.

 1: #include <taskflow/cuda/cudaflow.hpp>
 2:
 3: // saxpy (single-precision A·X Plus Y) kernel
 4: __global__ void saxpy(int n, float a, float *x, float *y) {
 5:   int i = blockIdx.x*blockDim.x + threadIdx.x;
 6:   if (i < n) {
 7:     y[i] = a*x[i] + y[i];
 8:   }
 9: }
10:
11: // main function begins
12: int main() {
13:
14:   tf::Taskflow taskflow;
15:   tf::Executor executor;
16:
17:   const unsigned N = 1<<20;                            // size of the vector
18:
19:   std::vector<float> hx(N, 1.0f);                      // x vector at host
20:   std::vector<float> hy(N, 2.0f);                      // y vector at host
21:
22:   float *dx{nullptr};                                  // x vector at device
23:   float *dy{nullptr};                                  // y vector at device
24:
25:   tf::Task allocate_x = taskflow.emplace(
26:     [&](){ cudaMalloc(&dx, N*sizeof(float));}
27:   ).name("allocate_x");
28:
29:   tf::Task allocate_y = taskflow.emplace(
30:     [&](){ cudaMalloc(&dy, N*sizeof(float));}
31:   ).name("allocate_y");
32:
33:   tf::Task cudaflow = taskflow.emplace([&](tf::cudaFlow& cf) {
34:     // create data transfer tasks
35:     tf::cudaTask h2d_x = cf.copy(dx, hx.data(), N).name("h2d_x");
36:     tf::cudaTask h2d_y = cf.copy(dy, hy.data(), N).name("h2d_y");
37:     tf::cudaTask d2h_x = cf.copy(hx.data(), dx, N).name("d2h_x");
38:     tf::cudaTask d2h_y = cf.copy(hy.data(), dy, N).name("d2h_y");
39:
40:     // launch saxpy<<<(N+255)/256, 256, 0>>>(N, 2.0f, dx, dy)
41:     tf::cudaTask kernel = cf.kernel(
42:       (N+255)/256, 256, 0, saxpy, N, 2.0f, dx, dy
43:     ).name("saxpy");
44:
45:     kernel.succeed(h2d_x, h2d_y)
46:           .precede(d2h_x, d2h_y);
48:   }).name("saxpy");
49:   cudaflow.succeed(allocate_x, allocate_y);  // overlap memory alloc
50:
51:   executor.run(taskflow).wait();
52:
53:   taskflow.dump(std::cout);                  // dump the taskflow
54: }

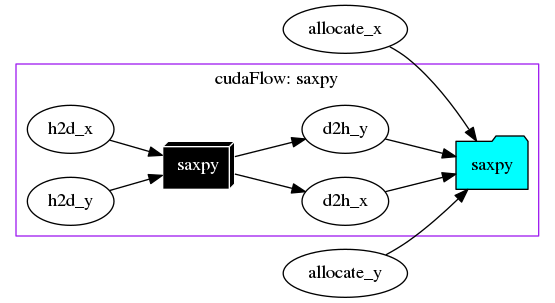

Debrief:

• Lines 3-9 define a saxpy kernel using CUDA
• Lines 19-20 declare two host vectors, hx and hy
• Lines 22-23 declare two device vector pointers, dx and dy
• Lines 25-31 declare two tasks to allocate memory for dx and dy on device, each of N*sizeof(float) bytes
• Lines 33-48 create a cudaFlow to define a GPU task graph that contains:
  • two host-to-device data transfer tasks
  • one saxpy kernel task
  • two device-to-host data transfer tasks
• Lines 49-53 define the task dependency between host tasks and the cudaFlow tasks and execute the taskflow

tf::cudaFlow is a lightweight abstraction over CUDA Graph. We do not expend yet another effort on simplifying kernel programming but focus on tasking CUDA operations and their dependencies. This organization lets users fully take advantage of CUDA featuress that are commensurate with their domain knowledge, while leaving difficult task parallelism details to Taskflow.

Compile a cudaFlow Program

Use nvcc to compile a cudaFlow program:

~$ nvcc -std=c++17 my_cudaflow.cu -I path/to/include/taskflow -O2 -o my_cudaflow
~$ ./my_cudaflow

Please visit the page Compile Taskflow with CUDA for more details.

Run a cudaFlow on Specific GPU

By default, a cudaFlow runs on the current CUDA GPU associated with the caller, which is typically GPU 0. Each CUDA GPU has an integer identifier in the range of [0, N), where N is the number of CUDA GPUs in a system. You can run a cudaFlow on a specific GPU using tf::Taskflow::emplace_on. The code below creates a cudaFlow that runs on GPU 2.

taskflow.emplace_on([] (tf::cudaFlow& cudaflow) {
  // here, cudaflow is under GPU 2
  // ...
}, 2);  // place the cudaFlow on GPU 2

Attention

tf::Taskflow::emplace_on allows you to place a cudaFlow on a particular GPU device, but it is your responsibility to ensure correct memory access. For example, you may not allocate a memory block on GPU 2 while accessing it from a kernel on GPU 0.

An easy practice is to allocate unified shared memory using cudaMallocManaged and let the CUDA runtime perform automatic memory migration between GPUs.

Create Memory Operation Tasks

tf::cudaFlow provides a set of methods for users to manipulate device memory. There are two categories, raw data and typed data. Raw data operations are methods with prefix mem, such as memcpy and memset, that operate in bytes. Typed data operations such as copy, fill, and zero, take logical count of elements. For instance, the following three methods have the same result of zeroing sizeof(int)*count bytes of the device memory area pointed to by target.

int* target;
cudaMalloc(&target, count*sizeof(int));
taskflow.emplace([&](tf::cudaFlow& cf){
  tf::cudaTask memset_target = cf.memset(target, 0, sizeof(int) * count);
  tf::cudaTask same_as_above = cf.fill(target, 0, count);
  tf::cudaTask same_as_above_again = cf.zero(target, count);
});

The method cudaFlow::fill is a more powerful version of cudaFlow::memset. It can fill a memory area with any value of type T, given that sizeof(T) is 1, 2, or 4 bytes. For example, the following code sets each element in the array target to 1234.

taskflow.emplace([&](tf::cudaFlow& cf){ cf.fill(target, 1234, count); });

Similar concept applies to cudaFlow::memcpy and cudaFlow::copy as well.

taskflow.emplace([&](tf::cudaFlow& cf){
  tf::cudaTask memcpy_target = cf.memcpy(target, source, sizeof(int) * count);
  tf::cudaTask same_as_above = cf.copy(target, source, count);
});

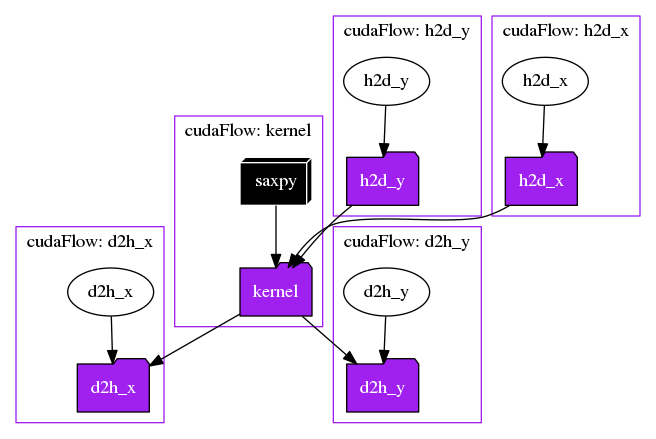

Study the Granularity

Creating a cudaFlow has certain overhead, which means fine-grained tasking such as one GPU operation per cudaFlow may not give you any performance gain. You should aggregate as many GPU operations as possible in a cudaFlow to launch the entire graph once instead of separated graphs. For example, the following code creates a fine-grained saxpy task graph using one cudaFlow per GPU operation.

tf::Task h2d_x = taskflow.emplace([&](tf::cudaFlow& cf) {
  cf.copy(dx, hx.data(), N).name("h2d_x");
}).name("h2d_x");  // creates the 1st cudaFlow

tf::Task h2d_y = taskflow.emplace([&](tf::cudaFlow& cf) {
  cf.copy(dy, hy.data(), N).name("h2d_y");
}).name("h2d_y");  // creates the 2nd cudaFlow

tf::Task d2h_x = taskflow.emplace([&](tf::cudaFlow& cf) {
  cf.copy(hx.data(), dx, N).name("d2h_x");
}).name("d2h_x");  // creates the 3rd cudaFlow

tf::Task d2h_y = taskflow.emplace([&](tf::cudaFlow& cf) {
  cf.copy(hy.data(), dy, N).name("d2h_y");
}).name("d2h_y");  // creates the 4th cudaFlow

tf::Task kernel = taskflow.emplace([&](tf::cudaFlow& cf) {
  cf.kernel((N+255)/256, 256, 0, saxpy, N, 2.0f, dx, dy).name("saxpy");
}).name("kernel"); // creates the 5th cudaFlow

kernel.succeed(h2d_x, h2d_y)
      .precede(d2h_x, d2h_y);

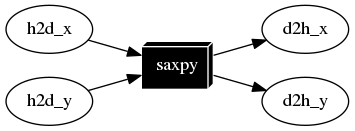

The following code aggregates the five GPU operations using one cudaFlow to achieve better performance.

tf::Task cudaflow = taskflow.emplace([&](tf::cudaFlow& cf) {
  tf::cudaTask h2d_x = cf.copy(dx, hx.data(), N).name("h2d_x");
  tf::cudaTask h2d_y = cf.copy(dy, hy.data(), N).name("h2d_y");
  tf::cudaTask d2h_x = cf.copy(hx.data(), dx, N).name("d2h_x");
  tf::cudaTask d2h_y = cf.copy(hy.data(), dy, N).name("d2h_y");
  tf::cudaTask saxpy = cf.kernel((N+255)/256, 256, 0, saxpy, N, 2.0f, dx, dy)
                         .name("saxpy");
  saxpy.succeed(h2d_x, h2d_y)
       .precede(d2h_x, d2h_y);
}).name("saxpy");  // creates one cudaFlow

Note

We encourage users to understand the parallel structure of their applications to come up with the best granularity of task decomposition. A refined task graph can have significant performance difference from the raw counterpart.

Offload a cudaFlow

By default, the executor offloads and executes the cudaFlow once, if the cudaFlow is never offloaded from its callable. During the execution, the executor first materializes the cudaFlow by mapping it to a native CUDA graph, creates an executable graph from the native CUDA graph, and then submit the executable graph to the CUDA runtime. Similar to tf::Executor, tf::cudaFlow provides several offload methods to run the GPU task graph:

taskflow.emplace([](tf::cudaFlow& cf) {
  // ... create CUDA tasks
  cf.offload();      // offload the cudaFlow and run it once
  cf.offload_n(10);  // offload the cudaFlow and run it 10 times
  cf.offload_until([repeat=5] () mutable { return repeat-- == 0; })  // five times
});

After you offload a cudaFlow, it is considered executed, and the executor will not run an offloaded cudaFlow after leaving the cudaFlow task callable. On the other hand, if a cudaFlow is not offloaded, the executor runs it once. For example, the following two versions represent the same execution logic.

// version 1: explicitly offload a cudaFlow once
taskflow.emplace([](tf::cudaFlow& cf) {
  cf.single_task([] __device__ (){});
  cf.offload();
});

// version 2 (same as version 1): executor offloads the cudaFlow once
taskflow.emplace([](tf::cudaFlow& sf) {
  cf.single_task([] __device__ (){});
});

Update a cudaFlow

Many GPU applications require you to launch a cudaFlow multiple times and update node parameters (e.g., kernel parameters and memory addresses) between iterations. tf::cudaFlow::offload allows you to execute the graph immediately and then update the parameters for the next execution. When you offload a cudaFlow, an executable graph will be created, and you must NOT change the topology but the node parameters between successive executions.

1: taskflow.emplace([&] (tf::cudaFlow& cf) {
2:   tf::cudaTask task = cf.kernel(grid1, block1, shm1, my_kernel, args1...);
3:   cf.offload();  // immediately run the cudaFlow once
4:
5:   cf.kernel(task, grid2, block2, shm2, my_kernel, args2...);
6:   cf.offload();  // run the cudaFlow again with the same graph topology
7:                  // but with different kernel parameters
8: });

Debrief:

• Line 2 creates a kernel task to run my_kernel with the given parameters.
• Line 3 offloads the cudaFlow and performs an immediate execution.
• Line 5 updates the parameters of my_kernel through its task.
• Line 6 executes the cudaFlow again with updated kernel parameters.

Between successive offloads (i.e., executions of a cudaFlow), you can update the task parameters, such as changing the kernel execution parameters and memory operation parameters. However, you must NOT change the topology of an offloaded cudaFlow. Each method of task creation in tf::cudaFlow has an overload that updates the parameters of the task created from the same creation method.

Attention

There are a few restrictions on updating task parameters in a cudaFlow. Notably, you must NOT change the topology of an offloaded graph. In addition, update methods have the following limitations:

• kernel task
  • The kernel function is not allowed to change. This restriction applies to all algorithm tasks that are created using lambda.
• memset and memcpy tasks:
  • The CUDA device(s) to which the operand(s) was allocated/mapped cannot change
  • The source/destination memory must be allocated from the same contexts as the original source/destination memory.

Use cudaFlow in a Standalone Environment

You can use tf::cudaFlow in a standalone environment without going through tf::Taskflow and offloads it to a GPU from the caller thread. All the features we have discussed so far apply to the standalone use. The following code gives an example of using a standalone cudaFlow to create a saxpy task graph that runs on a GPU.

tf::cudaFlow cf;  // create a standalone cudaFlow

tf::cudaTask h2d_x = cf.copy(dx, hx.data(), N).name("h2d_x");
tf::cudaTask h2d_y = cf.copy(dy, hy.data(), N).name("h2d_y");
tf::cudaTask d2h_x = cf.copy(hx.data(), dx, N).name("d2h_x");
tf::cudaTask d2h_y = cf.copy(hy.data(), dy, N).name("d2h_y");
tf::cudaTask saxpy = cf.kernel((N+255)/256, 256, 0, saxpy, N, 2.0f, dx, dy)
                       .name("saxpy");

saxpy.succeed(h2d_x, h2d_y)   // kernel runs after  host-to-device copy
     .precede(d2h_x, d2h_y);  // kernel runs before device-to-host copy

cf.offload();  // offload and run the standalone cudaFlow once

When using cudaFlow in a standalone environment, it is your choice to decide its GPU context. The following example creates a cudaFlow and executes it on GPU 0.

tf::cudaScopedDevice gpu(0);
tf::cudaFlow cf;  // create a standalone cudaFlow on GPU 0
cf.offload();     // run the capturer once on GPU 0

Note

In the standalone mode, a written cudaFlow will not be executed untile you explicitly call an offload method, as there is neither a taskflow nor an executor.
